Providing information to specific participant using the Push pattern

Using the Push Pattern to publish to specific recipients

The Push pattern is based on the responsibility-to-share principle. In this pattern, the provider knows a possible consumer of the information and sends this information without a previous request from the consumer (generally in synchronous way).


Note: The encryption and the decryption of messages is used only in very specific cases and will be detailed in the section Encrypting and decrypting messages. The procedure to sign the message with a digital signature and the corresponding verification of the signature will be described in the specific page Signing messages and verifying the signature.


How to Push messages

Once the provider knows who are the consumers of his information service, it can start to send push messages to the participant. The diagram bellow depict a typical dialog scenario between the Consumer and the Provider.

For this communication the provider uses the Push message type.

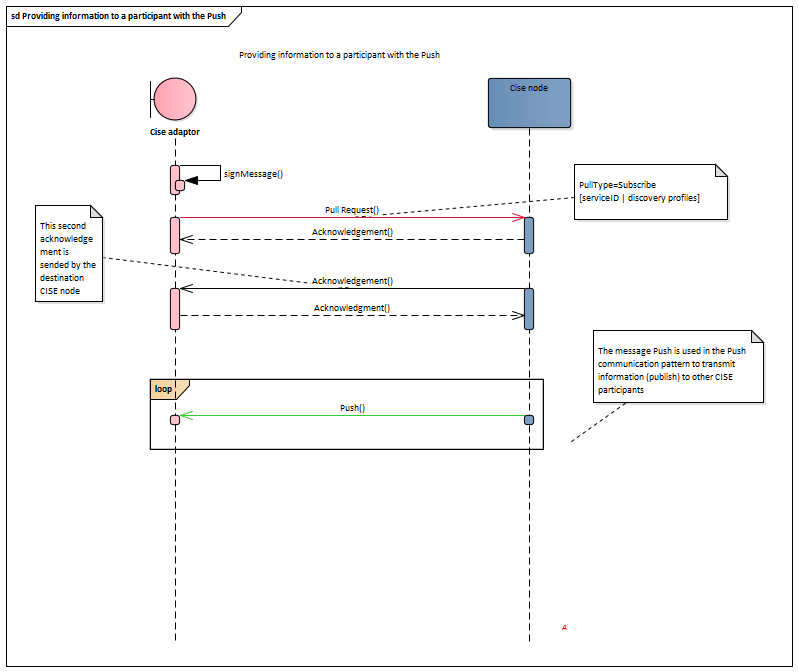

Publishing with the Push message



The Push message

The Push message is a message type called Push. The message Push is used in the this communication pattern to send information to the provider. The Payload contains the information sent.


This message extend the standard message structure, adding the DiscoveryProfiles attribute (for the description of common message structure, see The message structure common to all communication protocols). Note that in the context of this pattern, this attribute will not be used, because the Participant is already knowed. The DiscoveryProfiles  will be used for the Push addressed to Unknown Participants (See The unknown recipients: PullRequest Unknown and Push Unknown).


Element

Required

Value

Description

DiscoveryProfiles

No

See The DiscoveryProfiles the way to profile a service.

See The DiscoveryProfiles the way to profile a service.


In the example attached you can notice the payload data, of the Vessel Service type, sent to the consumer:



Example of the Push Message


Example of the Push Message  Expand source
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<ns4:Push xmlns:ns2="http://www.cise.eu/servicemodel/v1/authority/" xmlns:ns4="http://www.cise.eu/servicemodel/v1/message/" xmlns:ns3="http://www.cise.eu/servicemodel/v1/service/">
    <CorrelationID>4f90a02a-0b2c-43db-b186-f6267eaf6ee2</CorrelationID>
    <CreationDateTime>2019-08-22T13:58:38.947Z</CreationDateTime>
    <MessageID>01d19315-de7e-4709-840c-3078a92fe1ca</MessageID>
    <Priority>Low</Priority>
    <RequiresAck>true</RequiresAck>
    <Sender>
        <ServiceID>cx.simlsa1-nodecx.vessel.subscribe.provider</ServiceID>
        <ServiceOperation>Subscribe</ServiceOperation>
        <ServiceRole>Provider</ServiceRole>
        <ServiceType>VesselService</ServiceType>
    </Sender>
    <Payload xsi:type="ns4:XmlEntityPayload" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
        <InformationSecurityLevel>NonClassified</InformationSecurityLevel>
        <InformationSensitivity>NonSpecified</InformationSensitivity>
        <Purpose>VTM</Purpose>
        <Vessel xmlns:loc="http://www.cise.eu/datamodel/v1/entity/location/" xmlns:mov="http://www.cise.eu/datamodel/v1/entity/movement/">
            <Name>SAMMY G</Name>
            <LocationRel>
                <Location>
                    <Geometry>
                        <Latitude>81.0</Latitude>
                        <Longitude>171.0</Longitude>
                    </Geometry>
                    <LocationQualitativeAccuracy>Low</LocationQualitativeAccuracy>
                </Location>
                <COG>317.7</COG>
                <PeriodOfTime>
                    <StartDate>2019-07-16</StartDate>
                    <StartTime>05:38:36Z</StartTime>
                </PeriodOfTime>
                <SourceType>Declaration</SourceType>
                <SensorType>AutomaticIdentificationSystem</SensorType>
                <SOG>5.8</SOG>
            </LocationRel>
            <InvolvedEventRel>
                <Event xsi:type="mov:Movement">
                    <LocationRel>
                        <Location xsi:type="loc:PortLocation">
                            <PortName>SAN DIEGO</PortName>
                        </Location>
                        <DateTime>
                            <StartDate>2019-07-16</StartDate>
                            <StartTime>05:38:36Z</StartTime>
                        </DateTime>
                        <LocationRole>EndPlace</LocationRole>
                        <SourceType>Declaration</SourceType>
                    </LocationRel>
                    <MovementType>Voyage</MovementType>
                </Event>
            </InvolvedEventRel>
            <CallSign>WDC3709</CallSign>
            <MMSI>367012810</MMSI>
            <NavigationalStatus>UnderWayUsingEngine</NavigationalStatus>
            <ShipType>SpecialPurposeShip</ShipType>
        </Vessel>
    </Payload>
    <Reliability>
        <RetryStrategy>HighReliability</RetryStrategy>
    </Reliability>
    <Signature xmlns="http://www.w3.org/2000/09/xmldsig#">
        <SignedInfo>
            <CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
            <SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>
            <Reference URI="">
                <Transforms>
                    <Transform Algorithm="http://www.w3.org/TR/1999/REC-xslt-19991116">
                        <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:s="http://www.w3.org/2000/09/xmldsig#">
                            <xsl:strip-space elements="*"/>
                            <xsl:output indent="false" method="xml" omit-xml-declaration="yes"/>
                            <xsl:template match="*[not(self::s:Signature)]">
                                <xsl:element name="{local-name()}">
                                    <xsl:apply-templates select="*|text()"/>
                                </xsl:element>
                            </xsl:template>
                            <xsl:template match="s:Signature"/>
                        </xsl:stylesheet>
                    </Transform>
                    <Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
                </Transforms>
                <DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>
                <DigestValue>QNUAeLcYiOqktzSkLwFLBsBiHoY=</DigestValue>
            </Reference>
        </SignedInfo>
        <SignatureValue>nHfJHOz9Vhv7aSpB0ZOW83JXNirVMxs00AKDWwX6TKbF+Tk41PjMIFEqYFA0ikTX//DX653i8drl
a0LVMD4nsVs1A0PW3HbzFXxtiU4CmX1+x7nJH6PYKReXKQIOsqBiRFTD9ZT52arHUCqDi5sW11V4
kZbn+jr+wB8smbozNSc075TfC7CKt6xp07K2kwDeMyFxcVZBsi4uJPawl7QNqKyC/rEKBRzbrEn4
dOcZgS13HSTyZsNrSoutTEaQIO9ckldlFtj0OkZeOZC+ElSEXTOdb0L6GEJrtP92kHOKMZnP28Ev
DhZ5ydvzmo7yR0SlCZglFCuR3bRjK5G+g4ppUQ==</SignatureValue>
        <KeyInfo>
            <X509Data>
                <X509SubjectName>C=cx, DC=eucise, O=nodecx, OU=Participants, CN=simlsa1-nodecx.nodecx.eucise.cx</X509SubjectName>
                <X509Certificate>MIIELjCCAxagAwIBAgIIf0MB71Z6/e0wDQYJKoZIhvcNAQELBQAwPTEdMBsGA1UEAwwUc2lnbmlu
Zy1jYS5ldWNpc2UuY3gxDzANBgNVBAoMBmV1Y2lzZTELMAkGA1UEBhMCY3gwHhcNMTkwODAyMTUz
ODM5WhcNMjkwNTMwMTY1ODEwWjB3MSgwJgYDVQQDDB9zaW1sc2ExLW5vZGVjeC5ub2RlY3guZXVj
aXNlLmN4MRUwEwYDVQQLDAxQYXJ0aWNpcGFudHMxDzANBgNVBAoMBm5vZGVjeDEWMBQGCgmSJomT
8ixkARkWBmV1Y2lzZTELMAkGA1UEBhMCY3gwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIB
AQC9oB17DyudPMtLwZzfaySXtii5PZJZogVPDU6u8OH06ZECH5+4h7Ia7N3w/sZ3rkJ3DyQYmdj4
18zztWl85Y0dO+FaP+GYc51ThgOQgM8UrGKS7YC0UFESfof3RPf0zdsbTb+8DYw/F75z01rgyLab
yYAG9k+nP6w6HURV48Hy6odGxMOTU7ook3dp0eMk83cZeCmDgRWjvrD4yhRBCdLFuX+lFT0Cl8m6
+Al0/WAFzr/yFA15sk3YMpBWuQxm5McSA1hBQCe4fvmxTG7+klFJyxjGJ/QTwhDphDBAB/VBgkgL
sPJH/GrzqJN2zgrly47u9WunRqIQv9B/vgyZ09/pAgMBAAGjgfcwgfQwDAYDVR0TAQH/BAIwADAf
BgNVHSMEGDAWgBTVkohWSsFlEtVODrJH3Qs1T9ifGTBJBggrBgEFBQcBAQQ9MDswOQYIKwYBBQUH
MAGGLWh0dHA6Ly9lamJjYTo4MDgwL2VqYmNhL3B1YmxpY3dlYi9zdGF0dXMvb2NzcDAqBgNVHREE
IzAhgh9zaW1sc2ExLW5vZGVjeC5ub2RlY3guZXVjaXNlLmN4MB0GA1UdJQQWMBQGCCsGAQUFBwMC
BggrBgEFBQcDATAdBgNVHQ4EFgQUGy0Xu0MZWnQU7SG7jNNAjN0omFowDgYDVR0PAQH/BAQDAgL8
MA0GCSqGSIb3DQEBCwUAA4IBAQCNqYvSEvOKRKWmF/a0929Mla1ZsoMpJdp1Yz5DNxpGAYIWd2qL
hWVllm+Etaqqvnajlx00xXR8UFgcBgahWtT8HKoWhLZJIF7vjCBbPaKcMhxmzLnDpFTsc04pt5z6
ofu0vmWKMaA2CtHlE2VPcNOnXt37Z8oCdc4MU9sJRTzsf6ILcEdBqlgP1craBM3cUg/qlqJainZB
gOj9LpApq0XSPlVZG6g7rJDlJQiVjziEW0Y0ZHXCRyBhtE94TmKBmU21ZwmdKEQvVjyKko12OD6i
SUgaHbbq/0CkHBWOuoQxhmil2WJ5wU+0WWWfvhNNo7qUACtXu6XvhhHLiBD0855v</X509Certificate>
            </X509Data>
        </KeyInfo>
    </Signature>
</ns4:Push>


Example of the Synchronous Acknowledgement received


Example of the Synchronous Acknowledgement received  Expand source
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<ns4:Acknowledgement xmlns:ns2="http://www.cise.eu/servicemodel/v1/authority/" xmlns:ns4="http://www.cise.eu/servicemodel/v1/message/" xmlns:ns3="http://www.cise.eu/servicemodel/v1/service/">
    <CorrelationID>d8a003e2-9b0a-4b09-9d2b-94ed87f92c1f_d62b0e1f-a9d2-4333-92ef-0e4aaaf012f2</CorrelationID>
    <CreationDateTime>2019-08-22T13:58:43.923Z</CreationDateTime>
    <MessageID>01d19315-de7e-4709-840c-3078a92fe1ca</MessageID>
    <Priority>High</Priority>
    <RequiresAck>false</RequiresAck>
    <AckCode>Success</AckCode>
    <AckDetail>Message delivered to all 1 recipients</AckDetail>
    <DiscoveredServices>
        <ServiceID>cx.simlsa2-nodecx.vessel.subscribe.consumer</ServiceID>
    </DiscoveredServices>
</ns4:Acknowledgement>

Example of the Asynchronous Acknowledgement received


Example of the Asynchronous Acknowledgement received  Expand source
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<ns4:Acknowledgement xmlns:ns2="http://www.cise.eu/servicemodel/v1/authority/" xmlns:ns4="http://www.cise.eu/servicemodel/v1/message/" xmlns:ns3="http://www.cise.eu/servicemodel/v1/service/">
    <CorrelationID>01d19315-de7e-4709-840c-3078a92fe1ca</CorrelationID>
    <CreationDateTime>2019-08-22T13:58:45.249Z</CreationDateTime>
    <MessageID>20f9c631-2f94-4922-a633-0bd88b8efef4</MessageID>
    <Priority>Low</Priority>
    <RequiresAck>false</RequiresAck>
    <Sender>
        <ServiceID>cx.simlsa2-nodecx.vessel.subscribe.consumer</ServiceID>
        <ServiceOperation>Acknowledgement</ServiceOperation>
        <Participant>
            <Id>eu.eucise.cx.simlsa2-nodecx</Id>
            <Name>Simulator LSA 2</Name>
            <Description>Second simulator LSA</Description>
            <ClassificationLevel>Unclassified</ClassificationLevel>
            <EndpointUrl>http://192.168.42.37:8380/sim-LSA/CISEMessageService</EndpointUrl>
            <EndpointType>SOAP</EndpointType>
            <ProvidedServicesIds>cx.simlsa2-nodecx.vessel.push.consumer</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa2-nodecx.persondocument.subscribe.consumer</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa2-nodecx.vessel.subscribe.consumer</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa2-nodecx.incident.subscribe.consumer</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa2-nodecx.locationdocument.subscribe.consumer</ProvidedServicesIds>
            <Gateway>
                <Id>eu.eucise.cx.nodecx</Id>
            </Gateway>
            <Owner>JRC</Owner>
            <PointOfContact>
                <Name>Jesus</Name>
            </PointOfContact>
            <AreasOfInterest>BalticSea</AreasOfInterest>
            <AreasOfInterest>NorthSea</AreasOfInterest>
            <Communities>GeneralLawEnforcement</Communities>
            <Communities>MarineEnvironment</Communities>
            <Functions>Safety</Functions>
            <MemberState>CX</MemberState>
        </Participant>
    </Sender>
    <Recipient>
        <ServiceID>cx.simlsa1-nodecx.vessel.subscribe.provider</ServiceID>
        <ServiceOperation>Acknowledgement</ServiceOperation>
        <Participant>
            <Id>eu.eucise.cx.simlsa1-nodecx</Id>
            <Name>Simulator LSA 1</Name>
            <Description>First simulator LSA</Description>
            <ClassificationLevel>Unclassified</ClassificationLevel>
            <EndpointUrl>http://192.168.42.37:8280/sim-LSA/CISEMessageService</EndpointUrl>
            <EndpointType>SOAP</EndpointType>
            <ProvidedServicesIds>cx.simlsa1-nodecx.vessel.push.provider</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa1-nodecx.vessel.pull.consumer</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa1-nodecx.persondocument.subscribe.provider</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa1-nodecx.vessel.subscribe.provider</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa1-nodecx.incident.subscribe.provider</ProvidedServicesIds>
            <ProvidedServicesIds>cx.simlsa1-nodecx.locationdocument.subscribe.provider</ProvidedServicesIds>
            <Gateway>
                <Id>eu.eucise.cx.nodecx</Id>
            </Gateway>
            <Owner>JRC</Owner>
            <PointOfContact>
                <Name>Jesus</Name>
                <Surname>Alvarado</Surname>
                <Address>10 Simon Cruz street, JRC, Italy</Address>
                <Telephone>+3984847722</Telephone>
                <Email>simon10.cruz@gmail.com</Email>
            </PointOfContact>
            <AreasOfInterest>BalticSea</AreasOfInterest>
            <AreasOfInterest>Mediterranean</AreasOfInterest>
            <Communities>Customs</Communities>
            <Communities>MaritimeSafetySecurity</Communities>
            <Functions>BorderMonitoring</Functions>
            <Functions>BorderOperation</Functions>
            <MemberState>CX</MemberState>
        </Participant>
    </Recipient>
    <Signature xmlns="http://www.w3.org/2000/09/xmldsig#" xmlns:ns5="http://www.cise.eu/accesspoint/service/v1/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
        <SignedInfo>
            <CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
            <SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>
            <Reference URI="">
                <Transforms>
                    <Transform Algorithm="http://www.w3.org/TR/1999/REC-xslt-19991116">
                        <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:s="http://www.w3.org/2000/09/xmldsig#">
                            <xsl:strip-space elements="*"/>
                            <xsl:output indent="false" method="xml" omit-xml-declaration="yes"/>
                            <xsl:template match="*[not(self::s:Signature)]">
                                <xsl:element name="{local-name()}">
                                    <xsl:apply-templates select="*|text()"/>
                                </xsl:element>
                            </xsl:template>
                            <xsl:template match="s:Signature"/>
                        </xsl:stylesheet>
                    </Transform>
                    <Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
                </Transforms>
                <DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>
                <DigestValue>zQaBJcvXbCmGyjWnUMv9o9c2Cxw=</DigestValue>
            </Reference>
        </SignedInfo>
        <SignatureValue>VZltvo8iF5nIngquPeXs9DZnPsg9U0L9HBwZ3IrMZ/Xz65FOJHnvmtqg3zOO3eBcCTztu7ADoBKJ
Saqm4tv1etBFkxVT8Jfifl42Ivc7qpVD8nNUGpry3xl5NyvCLarCjmG0sKjHrcd6KGrb/J/xpkOu
PjbkAL9QGooiSgliJ/qlMAH6FdGORttQrTP/rL+BjdjMMza8CFeO5wtPmsrSYhe/x5QxOPliBft2
YKlfWwI50xMlETEG2Y2VbjI0LfYr05gdPsYaKkaWYZ3aJNxQQ7fF0G1ohM8kT7aTqVqbbUD4JiRv
8qqBV122UY5ye6/TgJdc9tYR61xVdB2Ap8VTiw==</SignatureValue>
        <KeyInfo>
            <X509Data>
                <X509SubjectName>C=cx, DC=eucise, O=nodecx, OU=HOSTS, CN=apache.nodecx.eucise.cx</X509SubjectName>
                <X509Certificate>MIIEFzCCAv+gAwIBAgIIPEea4OOlZW8wDQYJKoZIhvcNAQELBQAwPTEdMBsGA1UEAwwUc2lnbmlu
Zy1jYS5ldWNpc2UuY3gxDzANBgNVBAoMBmV1Y2lzZTELMAkGA1UEBhMCY3gwHhcNMTkwNTMxMTY1
ODI2WhcNMjkwNTMwMTY1MDM0WjBoMSAwHgYDVQQDDBdhcGFjaGUubm9kZWN4LmV1Y2lzZS5jeDEO
MAwGA1UECwwFSE9TVFMxDzANBgNVBAoMBm5vZGVjeDEWMBQGCgmSJomT8ixkARkWBmV1Y2lzZTEL
MAkGA1UEBhMCY3gwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQDk4ziuiP/2OEIvOH14
7uDvGFWSFzaDCdf3tPD/KOgQJEOza7DiI9BLfF+WMowmDqWz700TeSuZhr4BigMNy/jSSGZ0/Tc5
aVAkx0AQRCaifwGyJH/wykx7pJLKgBfk5w0w1tdaaOfeAAyysOx8PK2ZA7gPxn6Md5wDvAcOqD9W
rjP3NS4yKaHeD2qoXkRM/Y/0puWfVl8nUANjcmCo+0YSWf5BRYtRjDcRrymQJbRV94QqPqA+QL5/
a4SoZl50yVLgoQOFCOwTLw9W8DYf0G+Yx5EW3BVjeH0LjnN62AL0DGaq5TBtgvyTLHjbPi5H9+Au
PC96xzZC3/4CAW0QN9VhAgMBAAGjge8wgewwDAYDVR0TAQH/BAIwADAfBgNVHSMEGDAWgBTVkohW
SsFlEtVODrJH3Qs1T9ifGTBJBggrBgEFBQcBAQQ9MDswOQYIKwYBBQUHMAGGLWh0dHA6Ly9lamJj
YTo4MDgwL2VqYmNhL3B1YmxpY3dlYi9zdGF0dXMvb2NzcDAiBgNVHREEGzAZghdhcGFjaGUubm9k
ZWN4LmV1Y2lzZS5jeDAdBgNVHSUEFjAUBggrBgEFBQcDAgYIKwYBBQUHAwEwHQYDVR0OBBYEFDdY
j56IKk4Ef+V5XwE6SqNvGXlUMA4GA1UdDwEB/wQEAwIC/DANBgkqhkiG9w0BAQsFAAOCAQEAkjaj
YBi7/FQl8rA8hOw1+MGCoPqAmKnV3mdph/rwPJKYEQ8/zE2dRIC8tU/HpSleTMqk81xNgbcD/q3O
YeGbU3fK2W6BrgyeMZYuaxiZ1rhWkoUVCv4GEDwXX8LQp4J9MJbvGYiQQhehuPqAF9xTHqTH3jnO
bom+iOLL4GNrEP8AM2gF15ktXvduS3UYOhUDPL7HR4J3bsEJYdaxzwZONg6NrQlcmGjVtNkQvck+
KHYZeiJOji3mNv+urD3J/piD/M7e5NaULy31g/V2SS2nu45YJ7BpfqucUg64RupInSlaf5u1I/gs
AyLlDhpigeQvncGryrt8Uk/V5n7f6t0S9w==</X509Certificate>
            </X509Data>
        </KeyInfo>
    </Signature>
    <AckCode>Success</AckCode>
    <AckDetail>Push message received</AckDetail>
</ns4:Acknowledgement>
