Guidelines : 3-MovementService (Port Call, Hazmat, Sercurity) from SSN

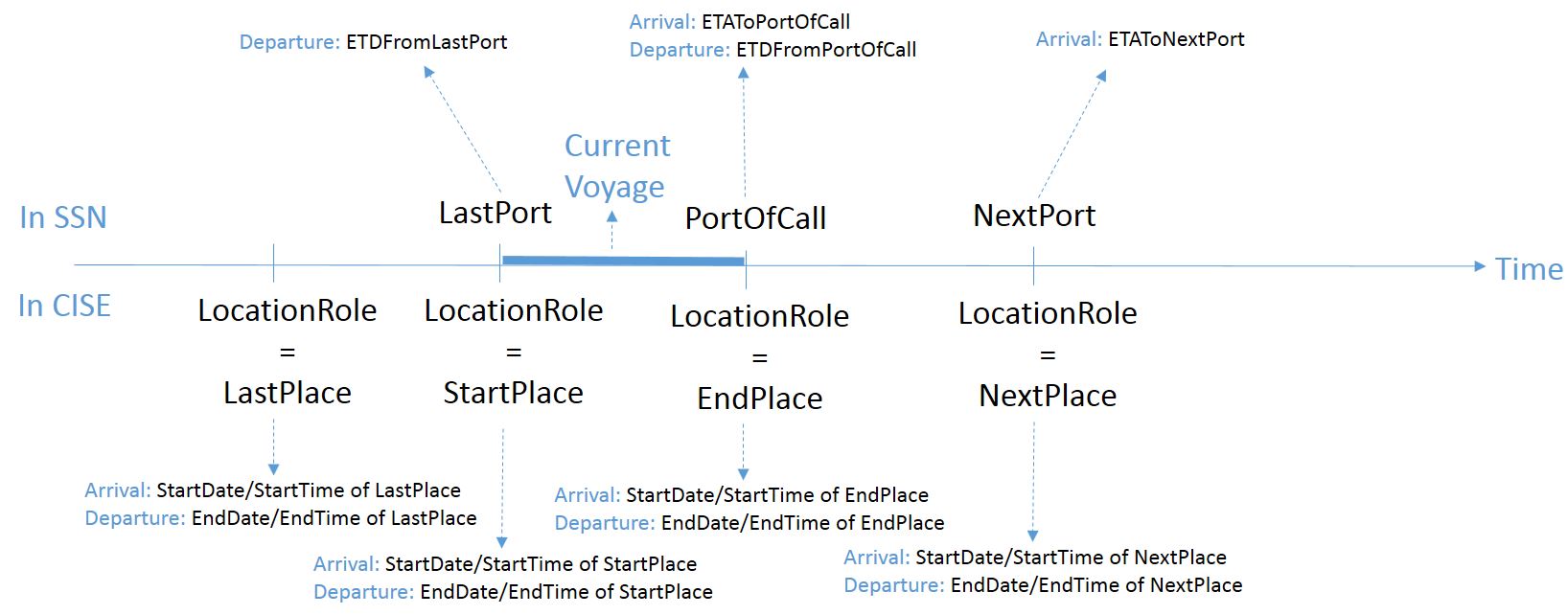

This MovementService describes all the information related to a voyage. This section describes the mapping with the SSN message MS2SSN_PortPlus_Not, which contains information about Port Call, Hazmat and Security. Waste declaration is not supported by the CISE data model.

The message structure of MS2SSN_PortPlus_Not can be found here.

XML Example

<?xml version="1.0" encoding="UTF-8"?>
<!-- Mapping with SSN message Port notification -->
<Movement xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="https://cise.jrc.ec.europa.eu/datamodel/last/xsd/Movement.xsd" xsi:schemaLocation="http://www.cise.eu/datamodel/v1/entity/vessel/ https://cise.jrc.ec.europa.eu/datamodel/last/xsd/entity/vessel/Vessel.xsd http://www.cise.eu/datamodel/v1/entity/location/ https://cise.jrc.ec.europa.eu/datamodel/last/xsd/entity/location/PortLocation.xsd http://www.cise.eu/datamodel/v1/entity/location/ https://cise.jrc.ec.europa.eu/datamodel/last/xsd/entity/location/PortFacilityLocation.xsd http://www.cise.eu/datamodel/v1/entity/organization/ https://cise.jrc.ec.europa.eu/datamodel/last/xsd/entity/organization/Organization.xsd http://www.cise.eu/datamodel/v1/entity/document/ https://cise.jrc.ec.europa.eu/datamodel/last/xsd/entity/document/VesselDocument.xsd http://www.cise.eu/datamodel/v1/entity/document/ https://cise.jrc.ec.europa.eu/datamodel/last/xsd/entity/document/Document.xsd http://www.cise.eu/datamodel/v1/entity/person/ https://cise.jrc.ec.europa.eu/datamodel/last/xsd/entity/person/Person.xsd" xmlns:vessel="http://www.cise.eu/datamodel/v1/entity/vessel/" xmlns:loc="http://www.cise.eu/datamodel/v1/entity/location/" xmlns:orga="http://www.cise.eu/datamodel/v1/entity/organization/" xmlns:doc="http://www.cise.eu/datamodel/v1/entity/document/" xmlns:person="http://www.cise.eu/datamodel/v1/entity/person/">
<!-- information about the voyage -->
    <LocationRel><!-- port of departure of the current voyage -->
        <Location xsi:type="loc:PortLocation"><LocationCode>EGDAM</LocationCode></Location>
        <DateTime><EndDate>2017-11-18</EndDate><EndTime>07:35:00Z</EndTime></DateTime>
        <LocationRole>StartPlace</LocationRole>
        <SourceType>Declaration</SourceType>
    </LocationRel>
    <LocationRel><!-- port of arrival of the current voyage -->
        <Location xsi:type="loc:PortLocation">
            <LocationCode>ESBCN</LocationCode>
            <FacilityRel><PortFacilityLocation><PortFacilityNumber>ESBCN:0022</PortFacilityNumber></PortFacilityLocation></FacilityRel>
        </Location><!-- TODO: include the facility in the port of arrival -->
        <DateTime><EndDate>2017-11-22</EndDate><EndTime>02:30:00Z</EndTime><StartDate>2017-11-21</StartDate><StartTime>19:00:00Z</StartTime></DateTime>
        <LocationRole>EndPlace</LocationRole>
        <SourceType>Declaration</SourceType>
    </LocationRel>
    <LocationRel><!-- next port after the current voyage -->
        <Location xsi:type="loc:PortLocation"><LocationCode>FRMRS</LocationCode></Location>
        <DateTime><StartDate>2017-11-22</StartDate><StartTime>17:00:00Z</StartTime></DateTime>
        <LocationRole>NextPlace</LocationRole>
        <SourceType>Declaration</SourceType>
    </LocationRel>
<!-- information about the vessel involved in this voyage -->
    <InvolvedObjectRel>
        <Object xsi:type="vessel:Vessel">
            <Name>HANOVER EXPRESS</Name>
            <LocationRel> <!-- place of registration -->
                <Location xsi:type="loc:PortLocation"><LocationCode>DEHAM</LocationCode><PortName>Hamburg</PortName></Location>
                <LocationRole>PortOfRegistry</LocationRole>
            </LocationRel>
            <InvolvedAgentRel> <!-- Company -->
                <Agent xsi:type="orga:Organization">
                    <IdentificationNumber>0217944</IdentificationNumber>
                    <LegalName>HAPAG-LLOYD AG</LegalName>
                    <OrganizationClassification>Private</OrganizationClassification>
                </Agent>
                <AgentRole>ShipOperatingCompany</AgentRole>
            </InvolvedAgentRel>
            <InvolvedAgentRel> <!-- Contact for DG Manifest (for Hazmat notification) -->
                <Agent xsi:type="person:Person">
                    <ContactInformation>
                        BEGIN:VCARD
                        VERSION:4.0
                        N:Dupont;Jean;;Mr.;
                        FN:Jean Dupont
                        ORG:ESBCN
                        TEL;TYPE=work,voice;VALUE=uri:tel:+34123456789
                        TEL;TYPE=work,fax;VALUE=uri:tel:+34012345678
                        EMAIL:jean.dupont@example.com
                        END:VCARD
                    </ContactInformation>
                    <FamilyName>Dupont</FamilyName>
                    <GivenName>Jean</GivenName>
                </Agent>
                <AgentRole>DGPContactPoint</AgentRole>
            </InvolvedAgentRel>
            <InvolvedAgentRel> <!-- Agent in port at arrival (for security notification) -->
                <Agent xsi:type="person:Person">
                    <ContactInformation>
                        BEGIN:VCARD
                        VERSION:4.0
                        N:Dupont;Paul;;Mr.;
                        FN:Paul Dupont
                        ORG:ESBCN
                        TEL;TYPE=work,voice;VALUE=uri:tel:+34123456789
                        TEL;TYPE=work,fax;VALUE=uri:tel:+34012345678
                        EMAIL:paul.dupont@example.com
                        END:VCARD
                    </ContactInformation>
                    <FamilyName>Dupont</FamilyName>
                    <GivenName>Paul</GivenName>
                </Agent>
                <AgentRole>ShipAgent</AgentRole>
            </InvolvedAgentRel>
            <Nationality>DE</Nationality>
            <TotalPersonsOnBoard>21</TotalPersonsOnBoard>
            <CallSign>DFGX2</CallSign>
            <ConditionOfTheCargoAndBallast>Empty</ConditionOfTheCargoAndBallast>
            <GrossTonnage>93750</GrossTonnage>
            <IMONumber>9343716</IMONumber>
            <INFShipClass>INF1</INFShipClass>
            <INMARSATNumber>+870123456789</INMARSATNumber>
            <ISPSSSecurityLevel>SecurityLevel1</ISPSSSecurityLevel>
            <MMSI>218092000</MMSI>
            <RegistryDate>2008-12-05</RegistryDate>
            <RegistryNumber>123456789</RegistryNumber>
            <ShipConfiguration>DoubleHullTanker</ShipConfiguration>
            <ShipType>GeneralCargoShip</ShipType>
        </Object>
        <ObjectRole>Participant</ObjectRole>
    </InvolvedObjectRel>
<!-- information about Hazmat involved in this voyage -->
    <DocumentRel>
        <Document xsi:type="doc:VesselDocument">
            <ReferenceURI>http://myserver.com/GetDGManifest?imo=9343716</ReferenceURI>
            <DocumentType>DangerousGoodsManifest</DocumentType>
        </Document>
    </DocumentRel>
    <MovementType>Voyage</MovementType>
    <VoyageNumber>123456789</VoyageNumber>
</Movement>

Detailed mapping

Information about the vessel identification and details involved in the voyage

CISE data model element	MS2SSN_PortPlus_Not element	formating or code conversion		Remarks
CISE data model element	MS2SSN_PortPlus_Not element	SSN	CISE	Remarks
Movement.InvolvedObjectRel.ObjectRole	-	-	fixed value: Participant
Movement.InvolvedObjectRel.Vessel.IMONumber	Body.Notification.VesselIdentification.IMONumber
Movement.InvolvedObjectRel.Vessel.MMSI	Body.Notification.VesselIdentification.MMSINumber
Movement.InvolvedObjectRel.Vessel.CallSign	Body.Notification.VesselIdentification.CallSign
Movement.InvolvedObjectRel.Vessel.Name	Body.Notification.VesselIdentification.ShipName
Movement.InvolvedObjectRel.Vessel.Nationality	Body.Notification.VesselIdentification.Flag
Movement.InvolvedObjectRel.Vessel.GrossTonnage	Body.Notification.VesselsDetails.GrossTonnage	Decimal	double
Movement.InvolvedObjectRel.Vessel.ShipType	Body.Notification.VesselsDetails.ShipType	codes	codes	See mapping here
Movement.InvolvedObjectRel.Vessel.INMARSATNumber	Body.Notification.VesselsDetails.InmarsatCallNumber.Inmarsat	text	text	It is possible to support up to 5 different numbers in SSN, only one is supported in CISE
Movement.InvolvedObjectRel.Vessel.RegistryDate	Body.Notification.VesselsDetails.CertificateOfRegistry.IssueDate	Date	XSD::Date (YYY-MM-DD)
Movement.InvolvedObjectRel.Vessel.RegistryNumber	Body.Notification.VesselsDetails.CertificateOfRegistry.CertificateNumber
Movement.InvolvedObjectRel.Vessel.LocationRel.LocationRole	-	-	fixed value: PortOfRegistry
Movement.InvolvedObjectRel.Vessel.LocationRel.PortLocation.LocationCode	Body.Notification.VesselsDetails.CertificateOfRegistry.PortOfRegistry.LoCode	locode	locode
Movement.InvolvedObjectRel.Vessel.LocationRel.PortLocation.PortName	Body.Notification.VesselsDetails.CertificateOfRegistry.PortOfRegistry.LocationName	text	text
Movement.InvolvedObjectRel.Vessel.InvolvedAgentRel.AgentRole	-	-	fixed value: ShipOperatingCompany
Movement.InvolvedObjectRel.Vessel.InvolvedAgentRel.Organization.LegalName	Body.Notification.VesselsDetails.Company.CompanyName
Movement.InvolvedObjectRel.Vessel.InvolvedAgentRel.Organization.IdentificationNumber	Body.Notification.VesselsDetails.Company.IMOCompanyNr
Movement.InvolvedObjectRel.Vessel.InvolvedAgentRel.Organization.OrganizationClassification	-	-	fixed value: private	If it is a private company. Other possible values: Governmental, InterGovernmental (not provided if not known)
Movement.InvolvedObjectRel.Vessel.ShipConfiguration	Body.Notification.PreArrival3DaysNotificationDetails.ShipConfiguration	Codes: SHT SHT-SBT DHT	Codes: SingleHullTanker SingleHullWithSegregattedBallastTanks DoubleHullTanker	Exact correspondences of the codes
Movement.InvolvedObjectRel.Vessel.ConditionOfTheCargoAndBallast	Body.Notification.PreArrival3DaysNotificationDetails.ConditionCargoBallastTanks	Text	Codes: Full, Empty, Inerted, Other	SSN is a free text, looking for keywords full, empty or inerted to assign a value, if not: Other
Movement.InvolvedObjectRel.Vessel.TotalPersonsOnBoard	Body.Notification.PreArrival24HoursNotificationDetails.POBVoyageTowardsPortOfCall	int	int

Information about the voyage

CISE data model element	MS2SSN_PortPlus_Not element	formating or code conversion		Remarks
CISE data model element	MS2SSN_PortPlus_Not element	SSN	CISE	Remarks
Movement.VoyageNumber	Body.Notification.VoyageInformation.ShipCallId
Movement.MovementType	-	-	Fixed value: Voyage	Movement is the voyage between the last port of call and the current port of call (reporting)
Movement.LocationRel1.PortLocation.LocationCode	Body.Notification.VoyageInformation.LastPort	Locode	Locode	LocationRel1 is the description of the last port of call (start of the current voyage)

Movement.LocationRel1.LocationRole	-	-	Fixed value: StartPlace	Start place means start of the current voyage
Movement.LocationRel1.SourceType	-	-	Fixed value: Declaration
Movement.LocationRel1.DateTime.EndDate	Body.Notification.VoyageInformation.ETDFromLastPort			End date and time are used because they represent the end of the call in the port
Movement.LocationRel1.DateTime.EndTime	Body.Notification.VoyageInformation.ETDFromLastPort
Movement.LocationRel2.PortLocation.LocationCode	Body.Notification.VoyageInformation.PortOfCall	Locode	Locode	LocationRel2 is the description of the current port of call (end of the current voyage)
Movement.LocationRel2.PortLocation.FacilityRel.PortFacilityLocation.PortFacilityNumber	Body.Notification.VoyageInformation.PortFacility and Body.Notification.VoyageInformation.PortFacilityLocode		Locode:PortFacility eg: ESBCN:0022	In SSN, PortFacilityLocode gives the locode of the port, PortFacility gives the 4 digits In CISE, the PortFacilityNumber is PortFacilityLocode:PortFacility
Movement.LocationRel2.LocationRole	-	-	Fixed value: EndPlace	End place means end of the current voyage
Movement.LocationRel2.SourceType	-	-	Fixed value: Declaration	Nota: The value could be "Observed" if the information is reported by the port and not the vessel, for instance once the vessel has arrived (ATA - actual time of arrival)
Movement.LocationRel2.DateTime.StartDate	Body.Notification.VoyageInformation.ETAToPortOfCall or Body.Notification.ArrivalNotificationDetails.ATAPortOfCall (if known)			start = arrival
Movement.LocationRel2.DateTime.StartTime	Body.Notification.VoyageInformation.ETAToPortOfCall or Body.Notification.ArrivalNotificationDetails.ATAPortOfCall (if known)
Movement.LocationRel2.DateTime.EndDate	Body.Notification.VoyageInformation.ETDFromPortofCall or Body.Notification.DepartureNotificationDetails.ATDPortOfCall (if known)			end = departure
Movement.LocationRel2.DateTime.EndTime	Body.Notification.VoyageInformation.ETDFromPortofCall or Body.Notification.DepartureNotificationDetails.ATDPortOfCall (if known)
Movement.LocationRel2.PlannedOperations	Body.Notification.PreArrival3DaysNotificationDetails.PlannedOperations	Text	codes: Loading, Unloading, Other	SSN is a free text, looking for keywords loading or unloading to assign a value, if not: Other Planned Operation is not declared properly: to be fixed in the model
Movement.LocationRel2.PlannedWorks	Body.Notification.PreArrival3DaysNotificationDetails.PlannedWorks	Text	codes: inspection, MaintenanceAndRepair, Other	SSN is a free text, looking for keywords inspection or maintenance or repair to assign a value, if not: Other Planned Works is not declared properly: to be fixed in the model
Movement.LocationRel3.PortLocation.LocationCode	Body.Notification.VoyageInformation.NextPort	Locode	Locode	LocationRel3 is the description of the next port of call in the next voyage
Movement.LocationRel3.LocationRole	-	-	Fixed value: NextPlace
Movement.LocationRel3.SourceType	-	-	Fixed value: Declaration
Movement.LocationRel3.DateTime.StartDate	Body.Notification.VoyageInformation.ETAToNextPort			start = arrival
Movement.LocationRel3.DateTime.StartTime	Body.Notification.VoyageInformation.ETAToNextPort

Information about Hazmat

The information can use the HazmatNotificationInfoNonEUDepartures or from HazmatNotificationInfoEUDepartures depending where is the information for the current voyage (if last port was EU or not)

CISE data model element	MS2SSN_PortPlus_Not element	formating or code conversion		Remarks
CISE data model element	MS2SSN_PortPlus_Not element	SSN	CISE	Remarks
Movement.InvolvedObjectRel.Vessel.INFShipClass	Body.NotificationStatus.HazmatNotificationInfoNonEUDepartures.HazmatCargoInformation.INFShipClass	codes: INF1 INF2 INF3	codes: INF1 INF2 INF3	This information should be at the same level of the other vessel information
Movement.DocumentRel.VesselDocument.DocumentType	-	-	fixed value: DangerousGoodsManifest
Movement.DocumentRel.VesselDocument.ReferenceURI	Body.NotificationStatus.HazmatNotificationInfoNonEUDepartures.CargoManifest.UrlDetails.Url	text	text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.AgentRole	-	-	fixed value: DGPContactPoint	This information should be at the same level of the other vessel information
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.FamilyName	Body.NotificationStatus.HazmatNotificationInfoNonEUDepartures.CargoManifest.ContactDetails.LastName	text	text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.GivenName	Body.NotificationStatus.HazmatNotificationInfoNonEUDepartures.CargoManifest.ContactDetails.FirstName	text	text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.ContactInformation.TEL;TYPE=voice	Body.NotificationStatus.HazmatNotificationInfoNonEUDepartures.CargoManifest.ContactDetails.Phone	text	text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.ContactInformation.TEL;TYPE=fax	Body.NotificationStatus.HazmatNotificationInfoNonEUDepartures.CargoManifest.ContactDetails.Fax	text	text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.ContactInformation.EMAIL	Body.NotificationStatus.HazmatNotificationInfoNonEUDepartures.CargoManifest.ContactDetails.EMail	text	text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.ContactInformation.ORG	Body.NotificationStatus.HazmatNotificationInfoNonEUDepartures.CargoManifest.ContactDetails.LoCode	text	text

Information about Security

CISE data model element	MS2SSN_PortPlus_Not element	formating or code conversion		Remarks
CISE data model element	MS2SSN_PortPlus_Not element	SSN	CISE	Remarks
Movement.InvolvedObjectRel.Vessel.ISPSSecurityLevel	Body.NotificationStatus.SecurityNotification.CurrentSecurityLevel	codes: SL1 SL2 SL3	codes: SecurityLevel1 SecurityLevel2 SecurityLevel1	This information should be at the same level of the other vessel information
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.AgentRole	-	-	fixed value: ShipAgent
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.FamilyName	Body.NotificationStatus.SecurityNotification.AgentInPortAtArrival.AgentName	Text	Text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.ContactInformation.TEL;TYPE=voice	Body.NotificationStatus.SecurityNotification.AgentInPortAtArrival.Phone	Text	Text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.ContactInformation.TEL;TYPE=fax	Body.NotificationStatus.SecurityNotification.AgentInPortAtArrival.Fax	Text	Text
Movement.InvolvedObjectRel.Vessel.InvoledAgentRel.Person.ContactInformation.EMAIL	Body.NotificationStatus.SecurityNotification.AgentInPortAtArrival.EMail	Text	Text
